Product Code: PS2000-12
● Peak Power: 6000W
— 3× the 2000W Continuous Output
— Reliably Handles High Inrush Loads (Motors, Compressors, Power Tools)
● Low Idle Consumption: 3.6W-4.5W
— Preserves Battery Charge When Not in Use
● ECO Mode Consumption: 0.7W-1.5W
— For Even Longer Standby Runtime
● Compact Design for Multiple Use
— RV, marine, off-grid solar, emergency backup
● UPS Transfer Switch (Switch time ≦ 20ms)
● High Conversion Efficiency: 92%
● Low THD: < 3%
● 5-Layer Protection System
— Overload Protection
— Short Circuit Protection
— Over Temperature Protection
— High/Low Voltage Protection
— External Reverse Polarity Protection
Images

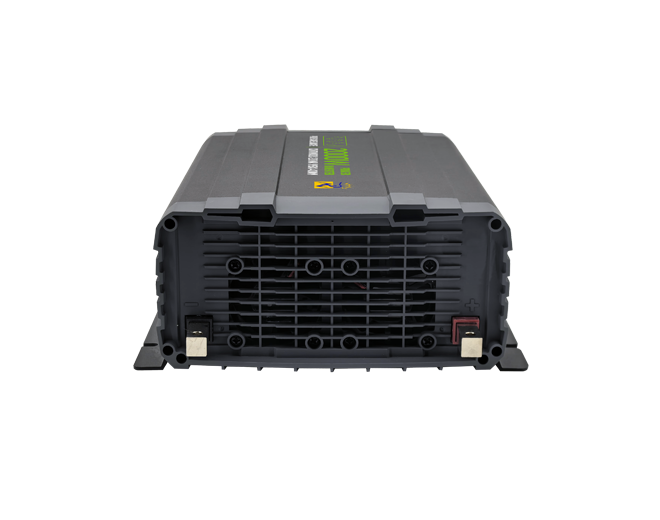

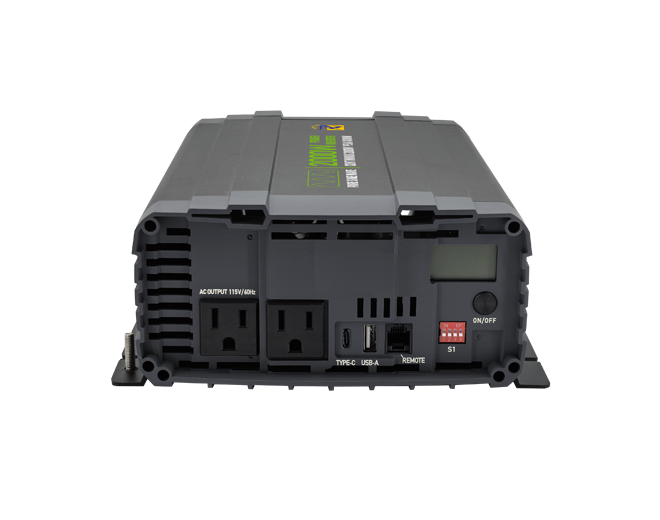

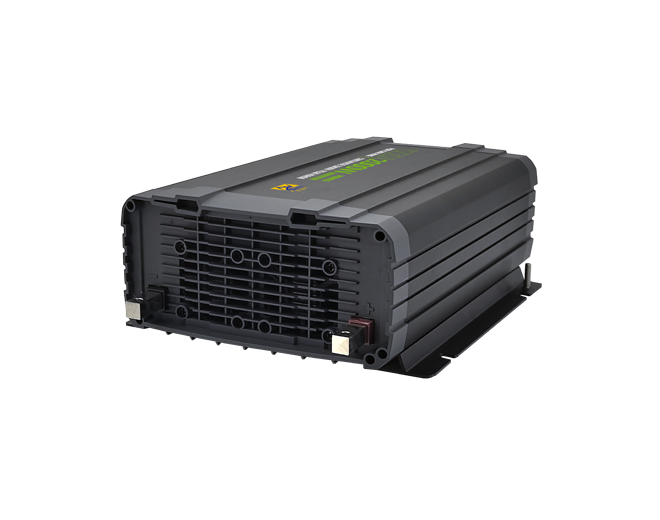

2000W 12V Pure Sine Wave Inverter
Product Parameters
| Continuous Power: 2000W |
|
Overload Capability: 2200W (≥ 110% of rated power) |
| Peak Surge Output: 6000W |
| DC Input Voltage: 12V (11V-15 V) |
| AC Output Voltage: US Spec 120V ±10% ; EU Spec 230V ±10% |
| Frequncy: US Spec 60Hz ±1 ; EU Spec 50Hz ±1 |
| Pure Sine Wave THD: US Spec< 3% ; EU Spec < 2% |
| Conversion Efficiency: > 92% |
| DC Input Static Current(No Load): ≤0.3A |
| USB-A: 5 V/2.4 A * 1 |
| Type C: QC 3.0 (5V/3A,9V/2A,12V/1.5A) |
| AC Outlets: US Spec 2；EU Spec 1 |
| LCD Display: DC Voltage, Output Power, High/Low Voltage Protection, Temperature, Overload and Short-Circuit Protection Status Codes |
| Remote On/Off: Supported via Built-in RJ45 Port (Remote Controller Optional) |
| Power Saving Mode (Eco Mode): Selectable |
| DC Input Current (Power Off): ≤20mA |
| Operating Temperature:-10°C-40°C |
| Operating Humidity: 20%-90% RH (Non-Condensing) |
| Storage Temperature: -30°C-80°C |
| Storage Humidity: 10%-95% RH (Non-Condensing) |
| Dimensions：L 260mm * W 180mm * H 95mm |
| Net Weight：2.8Kg |
