Product Code: PSA2000-12
The ultimate all-in-one energy solution for long-haul transport and off-grid reliability. Maximum Power. Minimal Space. The Smart Energy Core for Modern Fleets.
Key Features:
●3-in-1 Integrated Design: Combines a high-efficiency Pure Sine Wave Inverter, a powerful AC Charger, and a precision MPPT Solar Controller into a single, space-saving unit.
●Pure Sine Wave Precision: Delivers clean, stable power (THD < 3%)—ensuring safe operation for sensitive electronics, medical devices, and household appliances.
●High-Efficiency MPPT Solar: Features an advanced MPPT controller to maximize energy harvesting, keeping your auxiliary batteries charged on the move.
●Robust Surge Capacity: Features a 3x peak surge power capability to effortlessly handle heavy inductive loads and high-draw appliance startups (microwaves, refrigerators, and AC units) with ease.
●Seamless Power Switching: Equipped with an integrated Transfer Switch for automatic, zero-interruption transitions between shore power and battery power.
●Built for the Road: Engineered with rugged, vibration-resistant protection and comprehensive safety features (Overload, Over-temp, Over-voltage, and Short-circuit protection) to withstand demanding commercial vehicle environments.

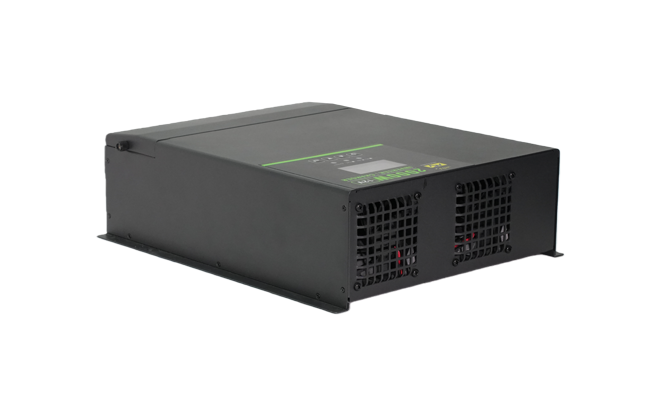

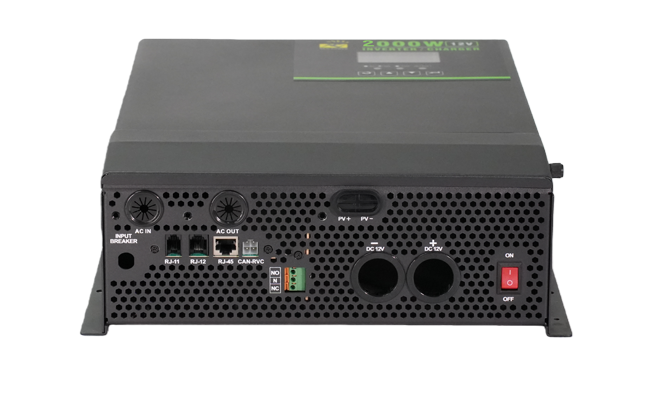

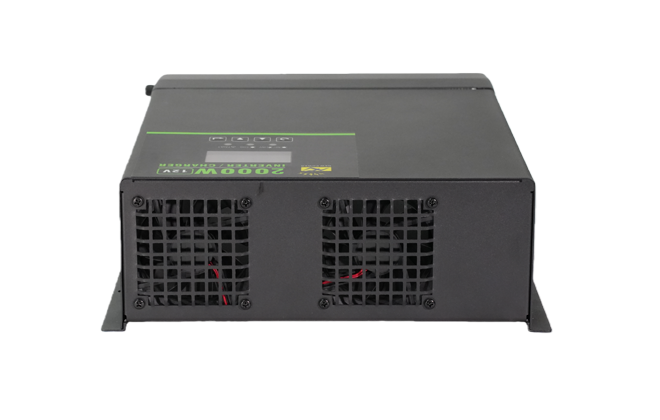

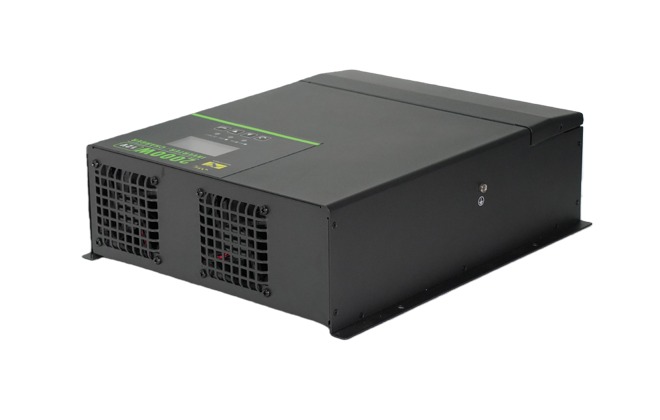

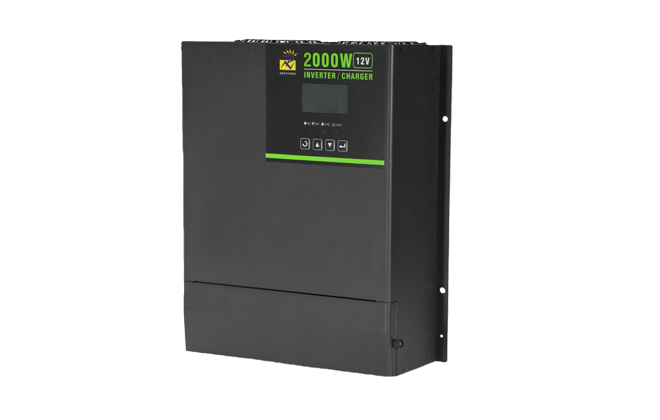

2000W 12V All-in-One Pure Sine Wave Solar Inverter Charger with MPPT
Product Parameters
| AC Output |
| Rated Power: 2000W |
| Peak Surge Power: 6000W |
| Voltage: US Spec 120V ±10% ; EU Spec 230V ±10% |
| Built-in AC Transfer Switch |
| Pure Sine Wave THD: US Spec < 4% ; EU Spec < 3% |
| Eco Mode (Optional) |
| Shut Down Current: ≦20mA |
| Battery Input |
| Voltage Range: 10V-15V |
| Rated Voltage: 12V |
| AC Input |
| Rated Voltage: US Spec 120V ; EU Spec 230V |
| Frequency: US Spec 60Hz ; EU Spec 50Hz |
| Max.AC Bypass Current: 40A |
| Max.AC Charge Current: 40A |
| >92% Conversion Effeciency |
| PV Input |
| Max.Power: 400W |
| Max.Open Voltage: 100V |
| MPPT Input Voltage Range: 30V-85V |
| Max.Input Current: 40A |
| PV Output |
| Max.Power: 360W |
| Max. Charge Current: 60A |
| PROTECTIONS |
| Overload Protection |
| Over Temperature Protection |
| High/Low Voltage Protection |
| Short Circuit Protection |
| External Reverse Polarity Protection |
