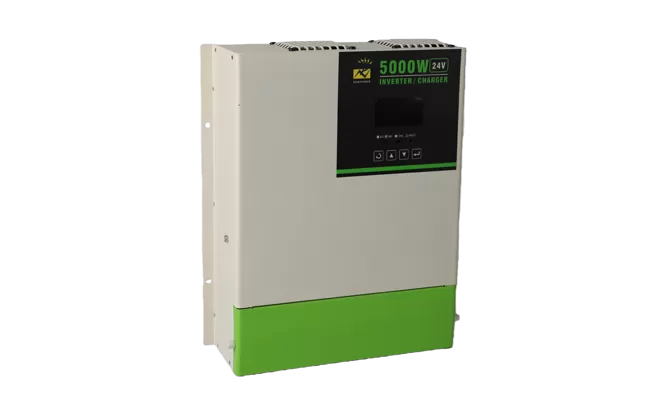

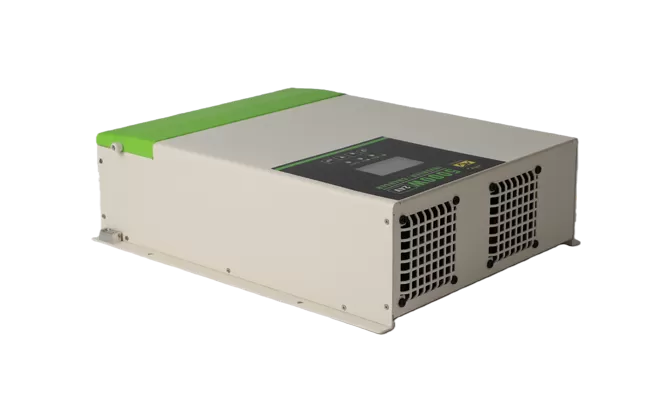

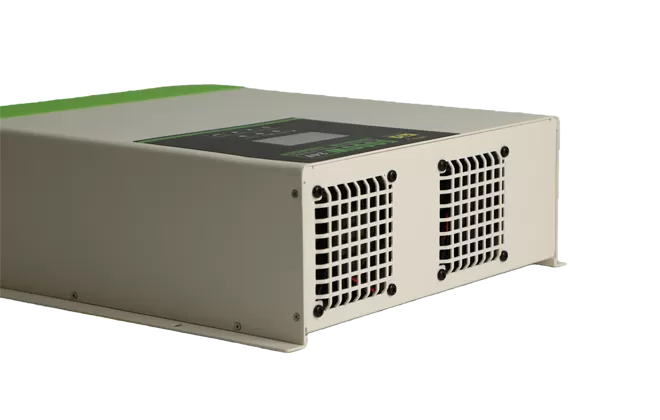

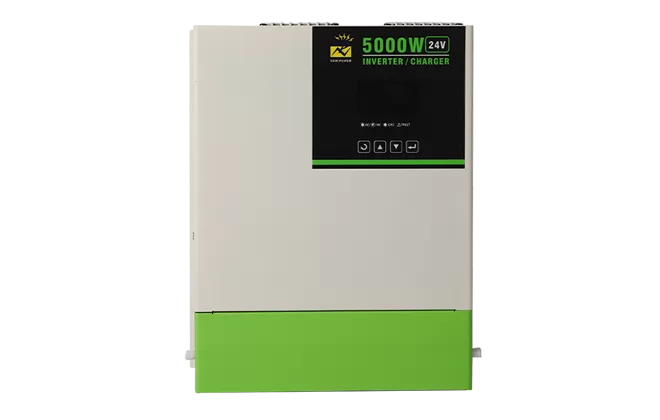

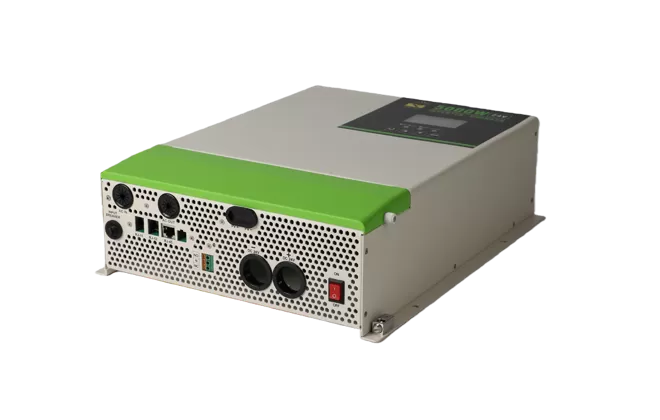

PSA5000-24 5000W 24V All-in-One Solar Charger Inverter
This is a multi-function inverter that combining functions of inverter, MPPT solar charger, and battery charger, providing portable uninterruptible power supply support. It's comprehensive LCD display offers user-configurable and easy-accessible touch button operations, such as battery charging current, AC/solar charging priority, and acceptable input voltage based on different applications.
Product Parameters
| AC Output |
| Continuous Power: 5000 Watts |
| Peak Surge Output: 10000 Watts |
| Voltage: 120 Vac +/-10% |
| Built-in AC Transfer Switch |
| Rated Current: 41 A |
| Output Wave Form: Pure Sine Wave（THD<3%） |
| >95% Conversion Effeciency |
| Battery Input |
| Voltage Range: 21~30 Vdc |
| Rated Voltage: 24 Vdc |
| AC Input |
| Rated Voltage: 120 Vac |
| Frequency: 60 Hz |
| Max.AC Bypass Current: 40 A |
| Max.AC Charge Current: 40 A |
| PV Input |
| Max.Power: 800 Watts |
| Max.Open Voltage: 100 Vdc |
| MPPT Input Voltage Range: 30-85 Vdc |
| Max.Input Current: 40 A |
| PV Output |
| Max.Power: 700 Watts |
| Max. Charge Current: 60 A |
| PROTECTIONS |
| Overload Protection |
| Over Temperature Protection |
| High/Low Voltage Protection |
| Short Circuit Protection |
| External Reverse Polarity Protection |
